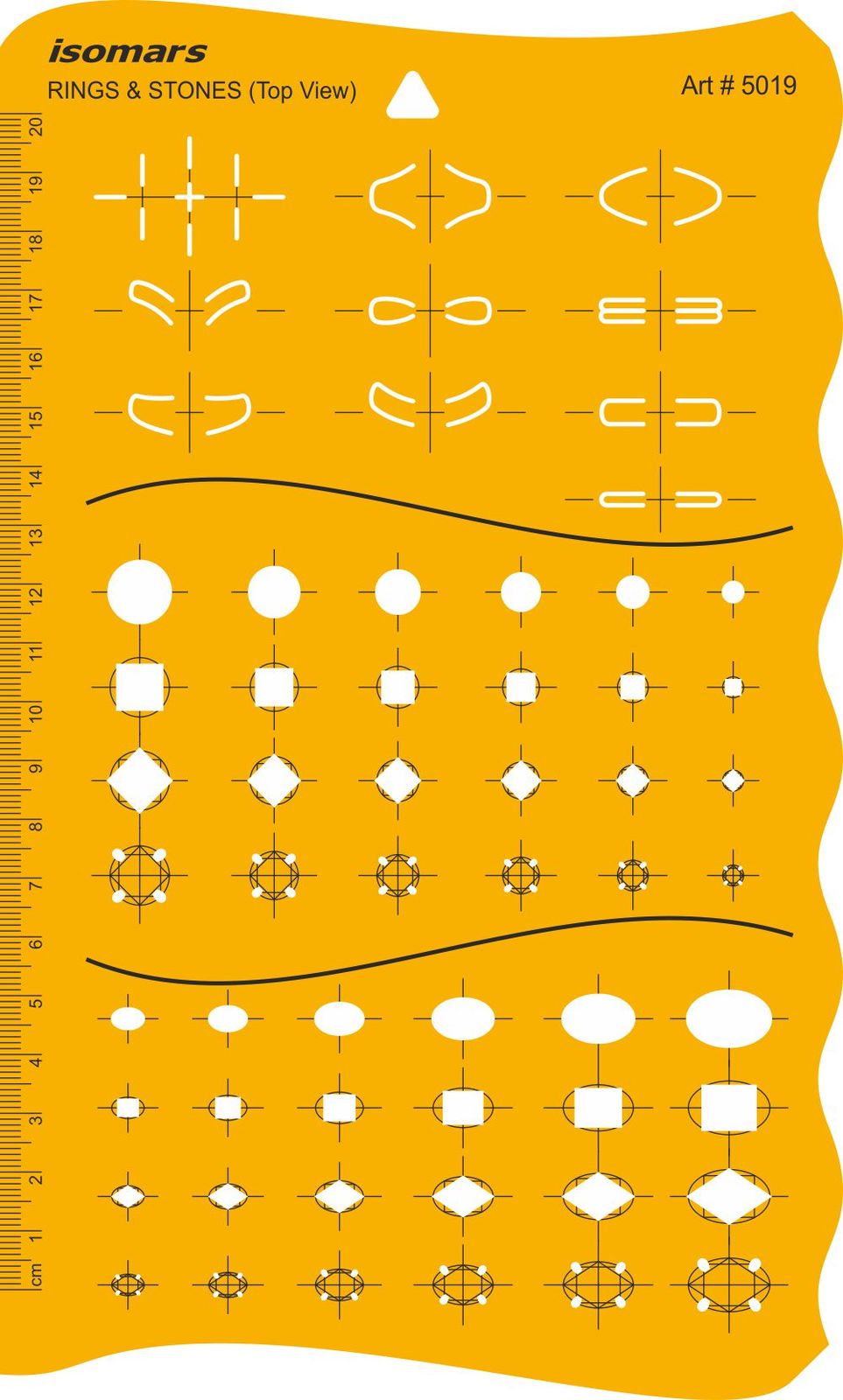

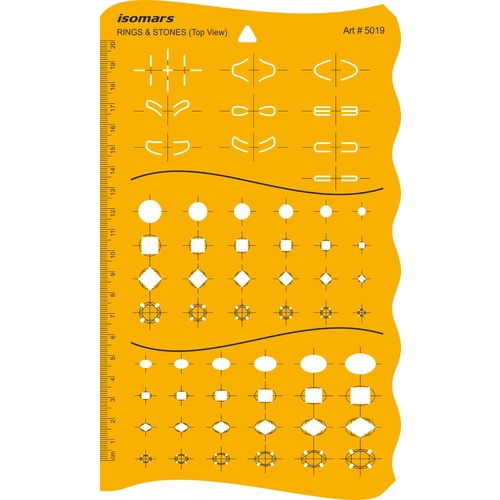

JEWELLERY DESIGN TEMPLATE

RINGS & STONES (Top View)

Make the most of your valuable design time by laying out your jewelry designs on paper! This template features top-view cut-outs for stone-set rings that show the upper shank and round or oval center stone position.

• Great for designing rings.
• Allows you to provide your customer an accurate rendering of your proposed design so they can better visualize the finished piece.

Template features:
• Ring shanks (10 cut-outs).
• Round 4-prong designs (6 round sizes with prong cut-outs).
• Oval 4-prong designs (6 oval sizes with prong cut-outs).
• Round stones (6 cut-outs).
• Square stones (6 cut-outs).
• Square, turned 45° (6 cut-outs).
• Oval stones (6 cut-outs).
• Rectangles stones (6 cut-outs).
• Diamond-shape stones (6 cut-outs).

• Round stones: 3.6–10.6mm dia.
• Square stones: 2.75–7.7mm dia.
• Square, turned 45°: 2.75–7.9mm dia.
• Oval stones: 5.5 x 3.7mm–14.6 x 9.7mm.
• Rectangles stones: 3.9 x 3.2–9.7 x 7.6mm.
• Diamond-shape stones: 5.5 x 3.7mm–14.1 x 9.6
