Precision Disk Cutter - Set of 7 with Screw Down Lever

PRECISION DISK CUTTER SET OF 7 with base (total 8 pieces)

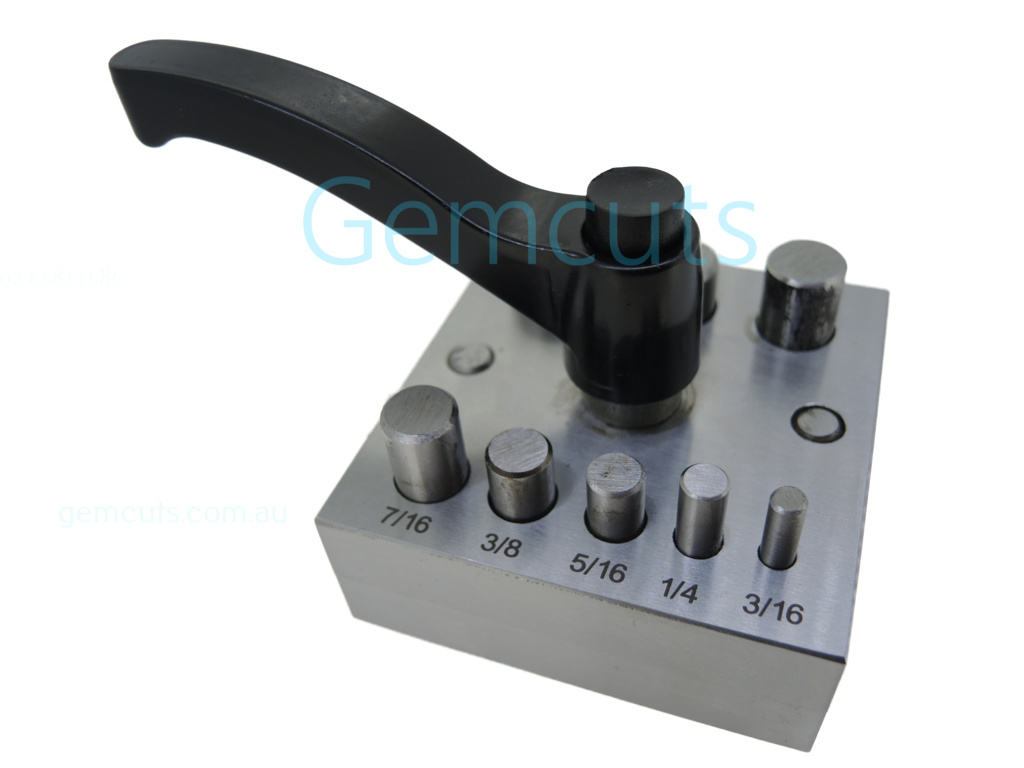

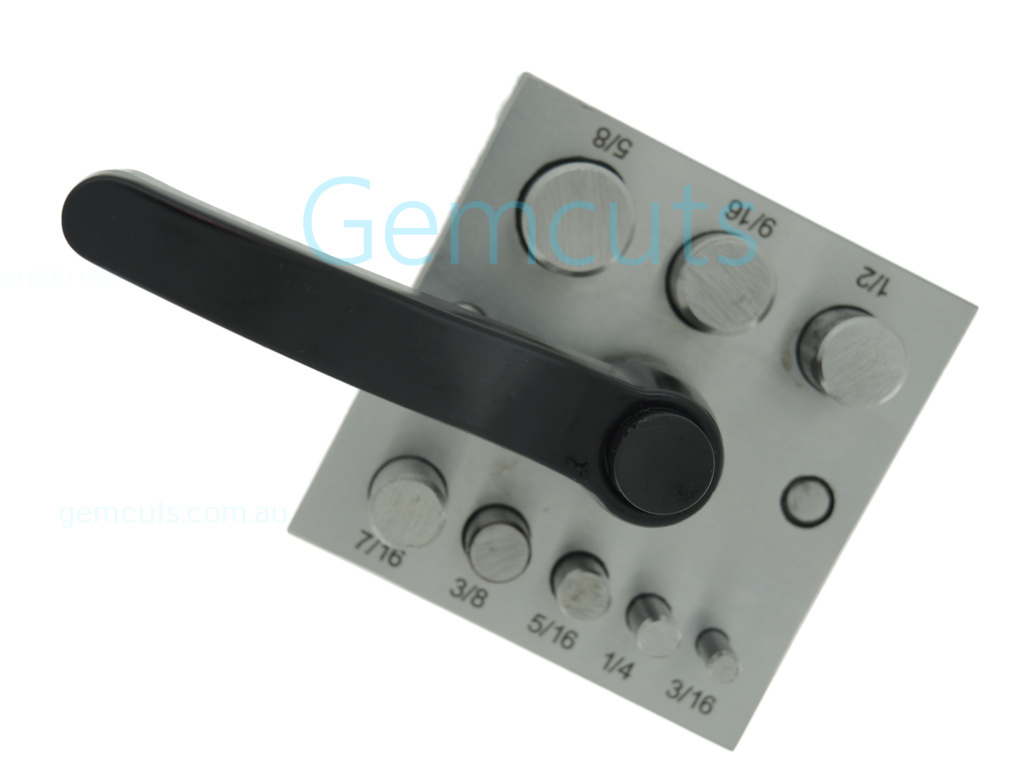

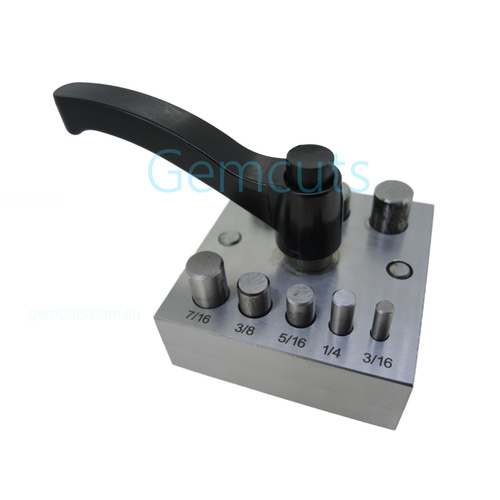

This disc cutter will cut circles out of sheet metal. It will reliably cut the same sizes every time. It comes with 8 punches and a square steel disc cutting block.

The block has a lever-style separating device, and the blocks can be clamped tightly together so they will hold sheet metal more securely while you cut it. The lever turns a bolt in the centre of the plates.

The block also has the sizes in inches engraved on it. This disc cutter will cut up to 20 gauge soft metal, and can be used on a rubber mat or block to ease the cutting process and protect your work surface.

To use it, remove all punches from the block, and select the size punch you would like. Place your sheet metal in the slot, adjust the lever to fit your metal, and place your punch, sharp side against the metal, in the correct slot. Strike the bevelled side of the punch with a heavy mallet until it pierces through the sheet metal.

Be careful of your fingers and other items on your work surface.

Punch sizes (inches): 3/16", 1/4", 5/16", 3/8", 7/16", 1/2", 9/16"
