Sintered Diamond Disks Lap 150mm (6 inch)
Notify me when back in stock

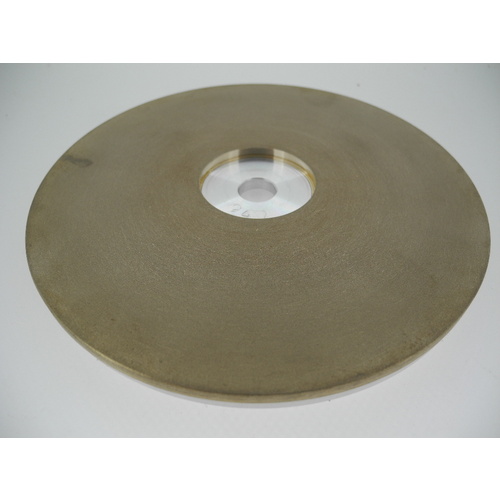

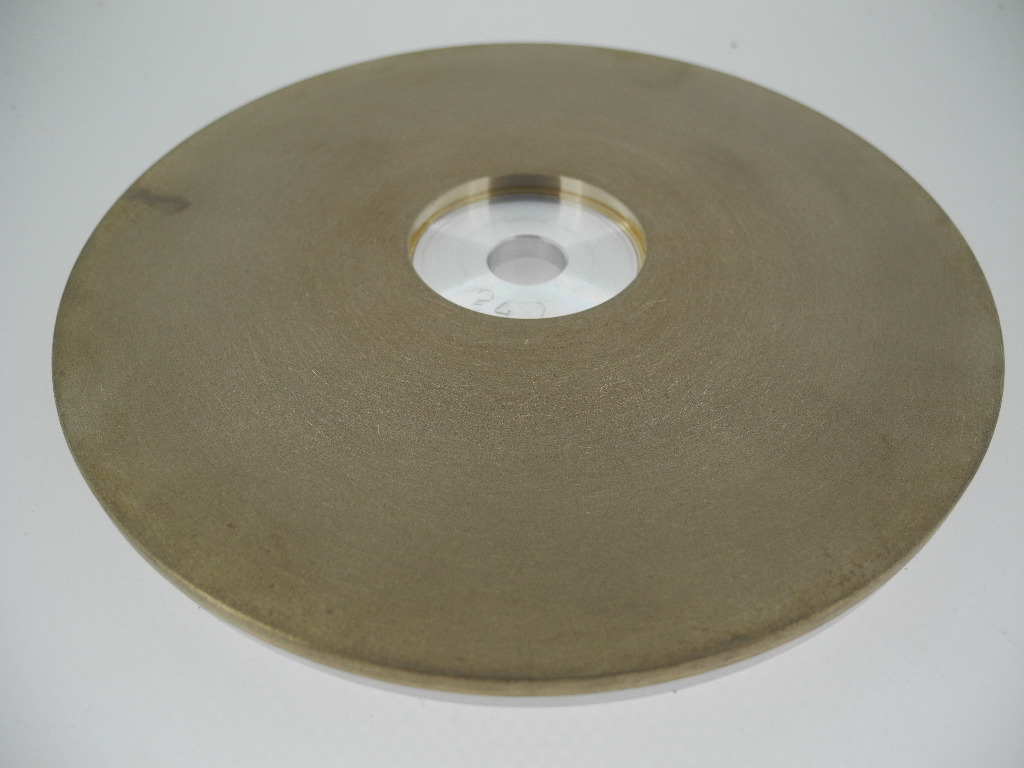

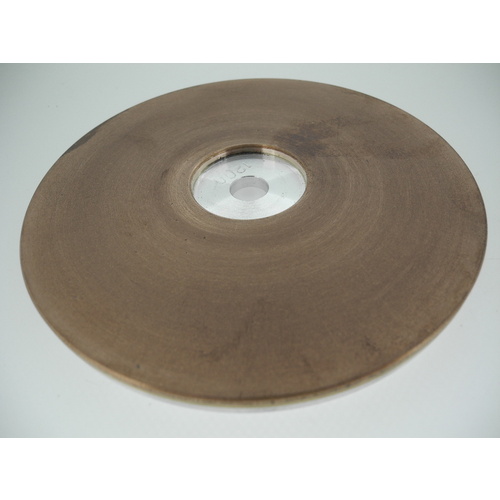

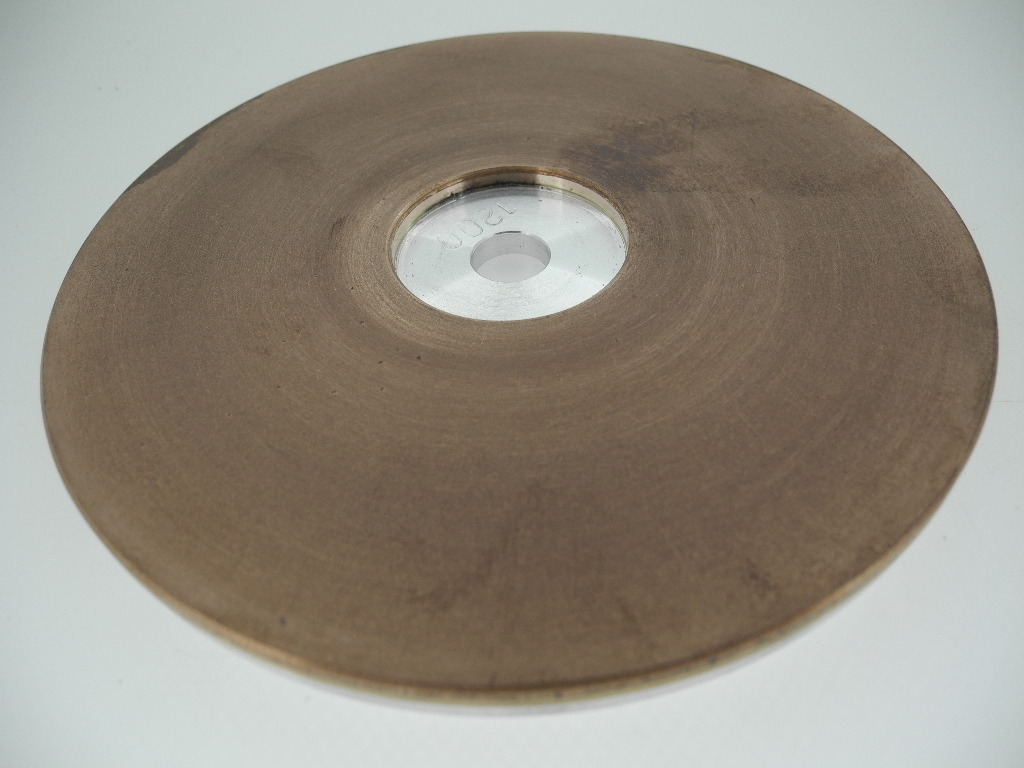

SLS Sintered Diamond Disk
Size: 150mm (6 inch)
If you are sick of replacing laps that always seem to be wearing out it could be time to try a sintered faceting lap. Our sintered laps have 4mm of diamond matrix and are permanently bonded to a machined steel master lap. The laps are 10mm thick in total.
You won't believe how long these laps last!
This lap likes a generous amount of water during use to flush away swarf and keep the stone cool.
USE ONLY FOR FLAT FACETING AVOID ROTARY ACTIONS LIKE BY A GEMMASTA PREFORMER OR FREE- HAND GRINDING. A sweeping action across the whole lap surface is preferable to maintain the laps flatness.
They are ideal for those who want high volume production and long life from their disks.
A 1/2" arbor hole is standard.
Dressing can be done by using a silicon carbide fine grinding block or white aluminium oxide dressing stick. You can also dress it by using a fine corundum grit on a sheet of glass.
(GPFL-)
| SKU | GPFL- |
| Brand | SLS |
| Shipping Weight | 1.5000kg |
| Shipping Width | 0.170m |
| Shipping Height | 0.025m |
| Shipping Length | 0.170m |
| Shipping Cubic | 0.000723000m3 |
600# sintered lap
By: Rick E on 15 July 2022First a disclaimer! I work at gemcuts so had the opportunity to try this out. Secondly, I’m a relatively novice faceter… I cut a labradorite and a topaz on the 600 sintered. Two really noticeable differences when compared to a plated lap: 1/ the inevitable marks left by any cutting lap seem to be of a much more uniform depth than those left by a plated 600 (even my old well worn 600). This meant a very much faster prepolish on the 3000 (copper with diamond and oil). 2/ it seems to give much sharper facet edges so that it was a lot easier to get accurate meet points. Again time saved in the prepolish was significant. Really worth considering, especially if you are cutting a lot of stones. Time saved was huge when compared with plated cutting laps..
