Water Supply Brass Needle Valve

WATER SUPPLY BRASS NEEDLE VALVE

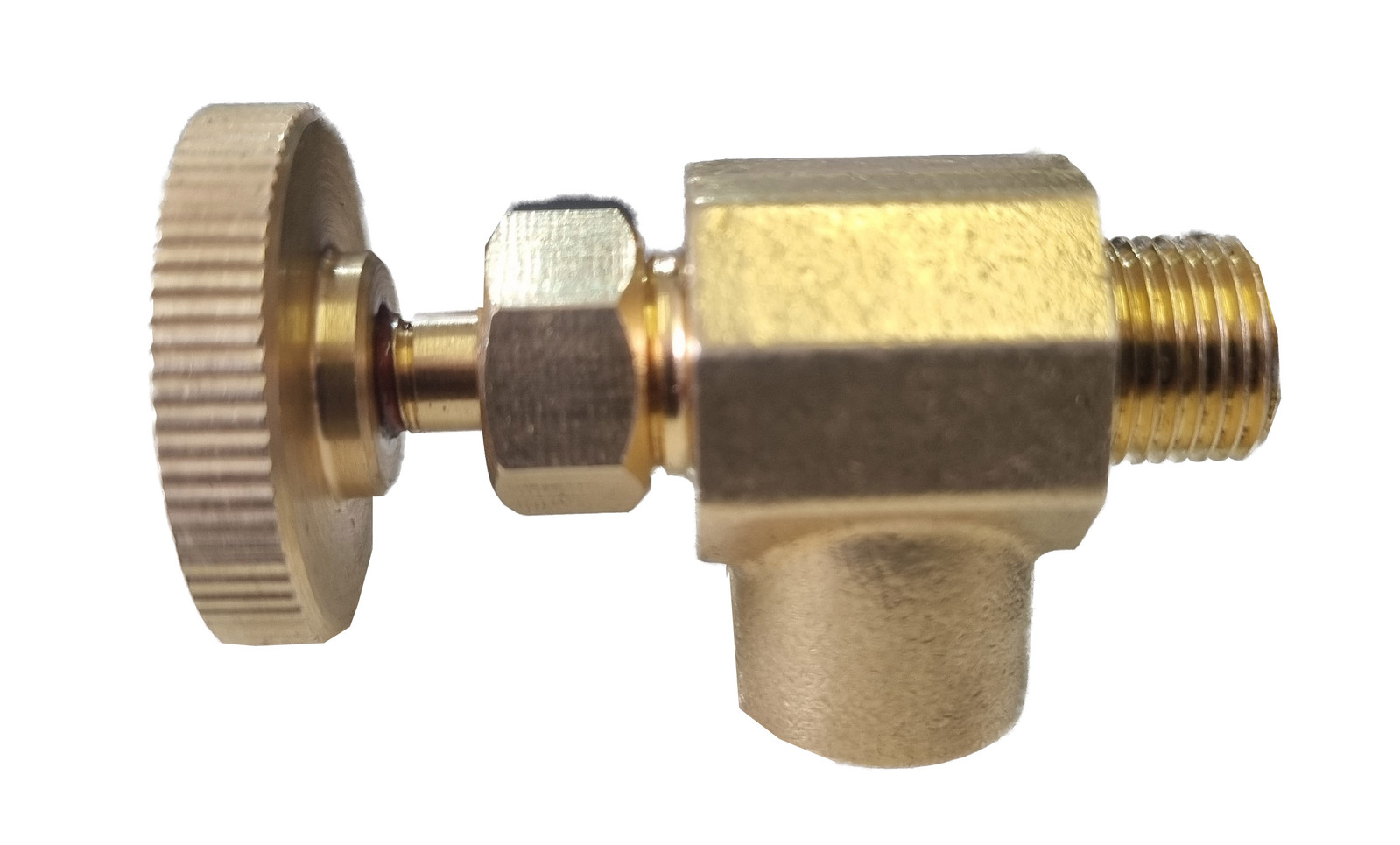

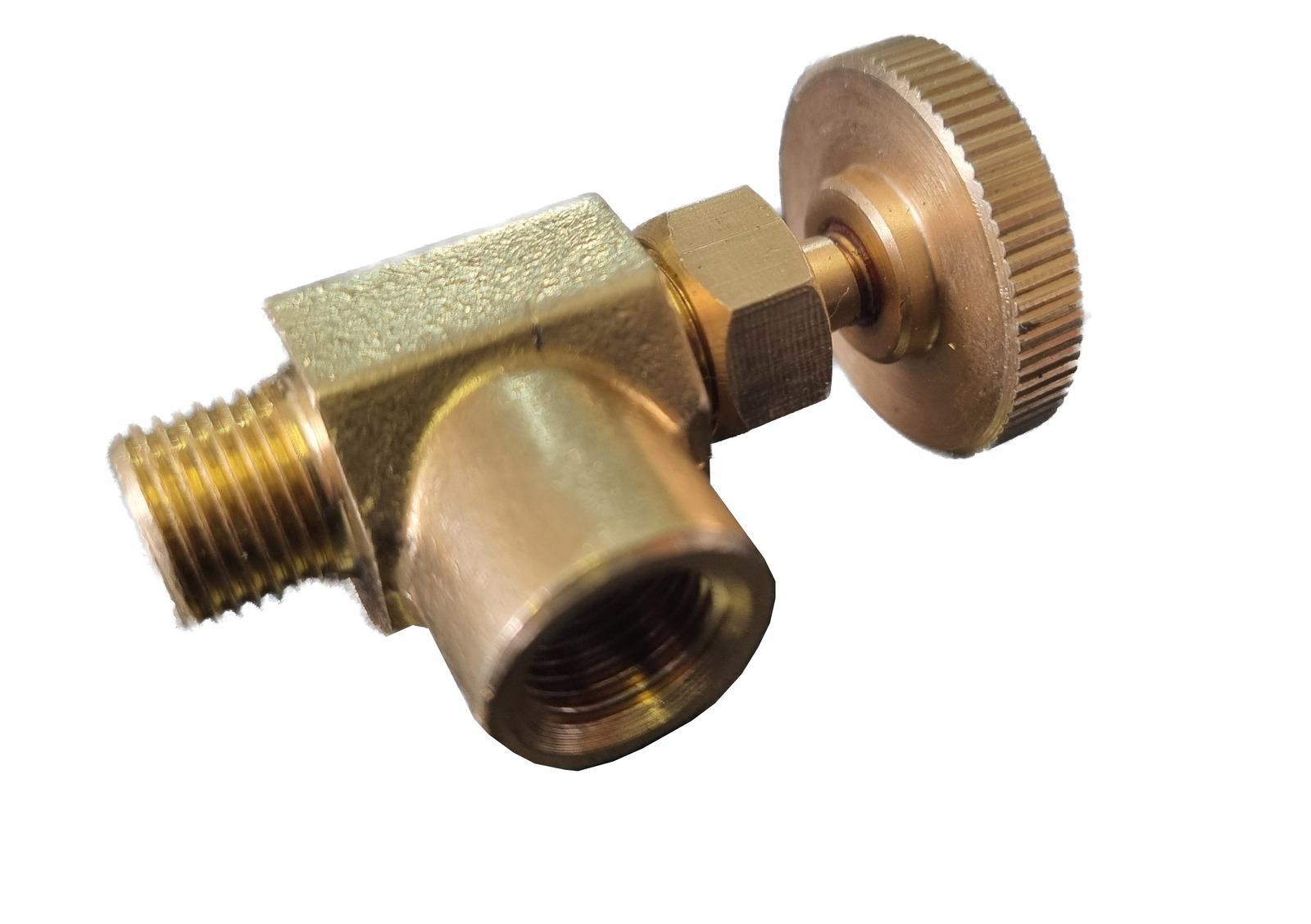

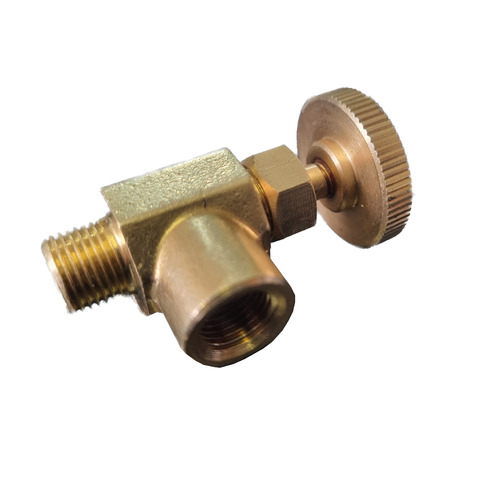

High quality solid brass needle valve. This is a great heavy duty option to replace plastic taps on cabbing machines and other lapidary machines that require a water supply.

Male Thread is 1/4" BSPP.

Female Thread is 1/8" BSPP

PLEASE NOTE - THREADS ARE BSP SIZES

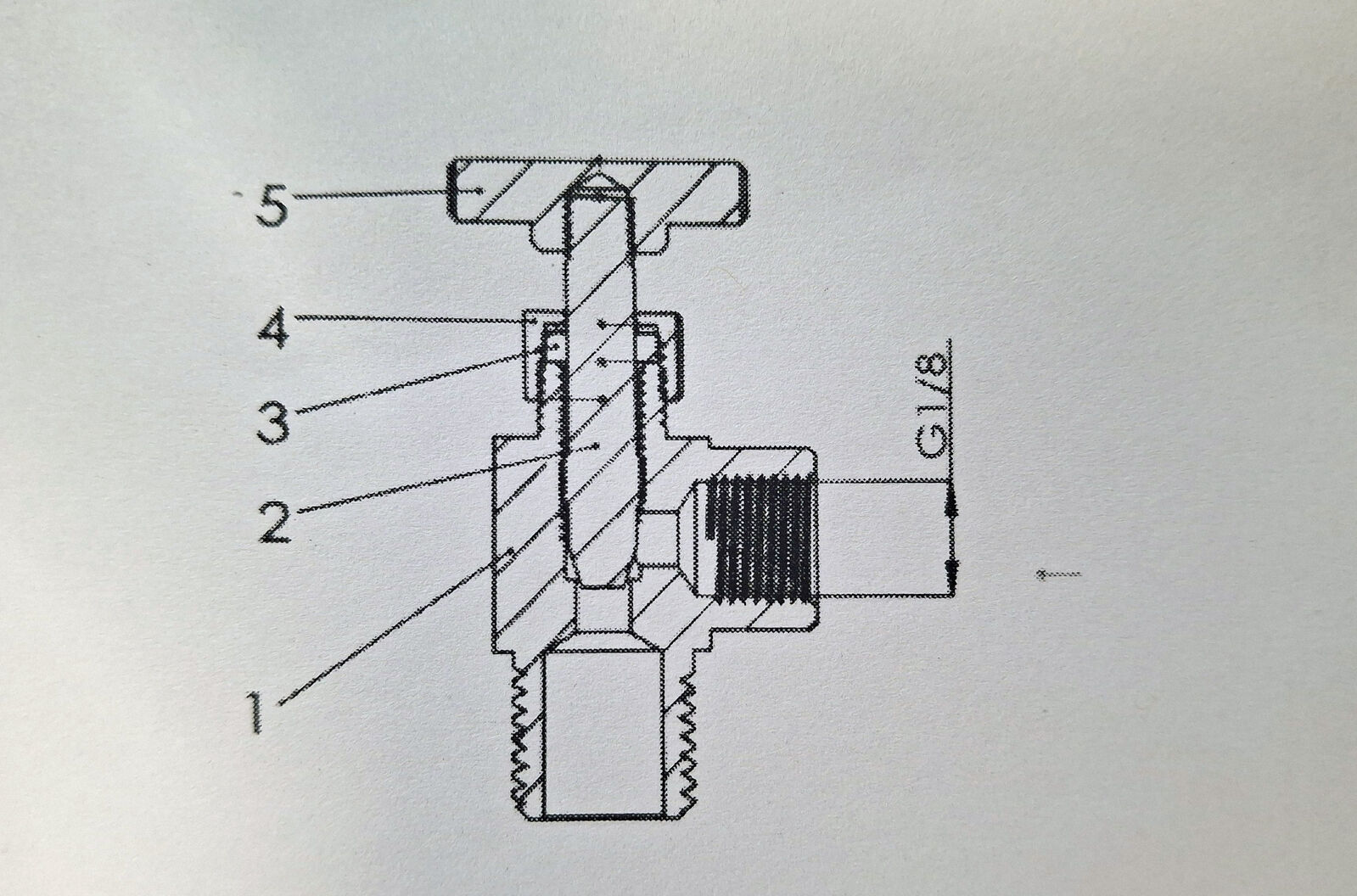

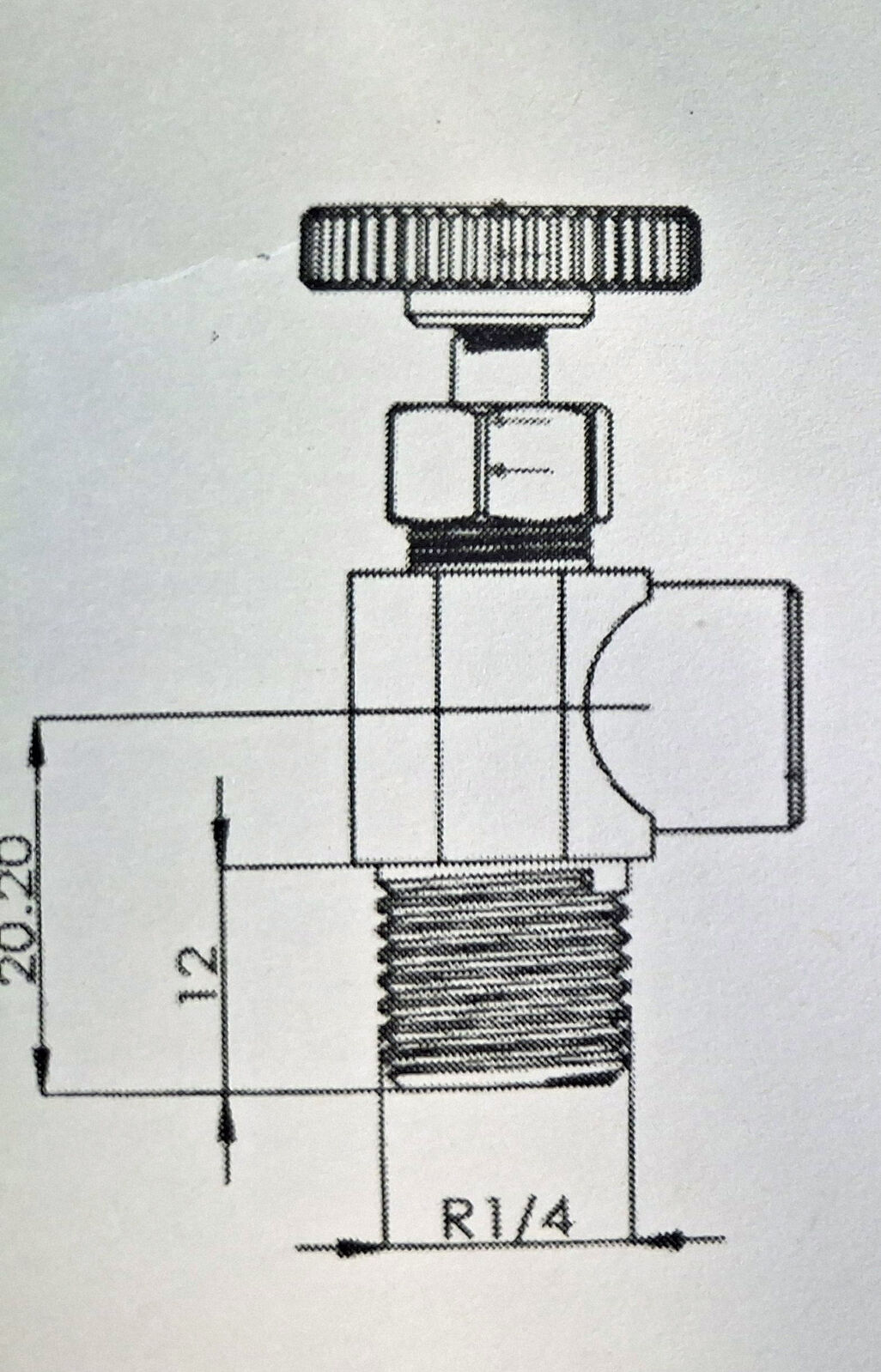

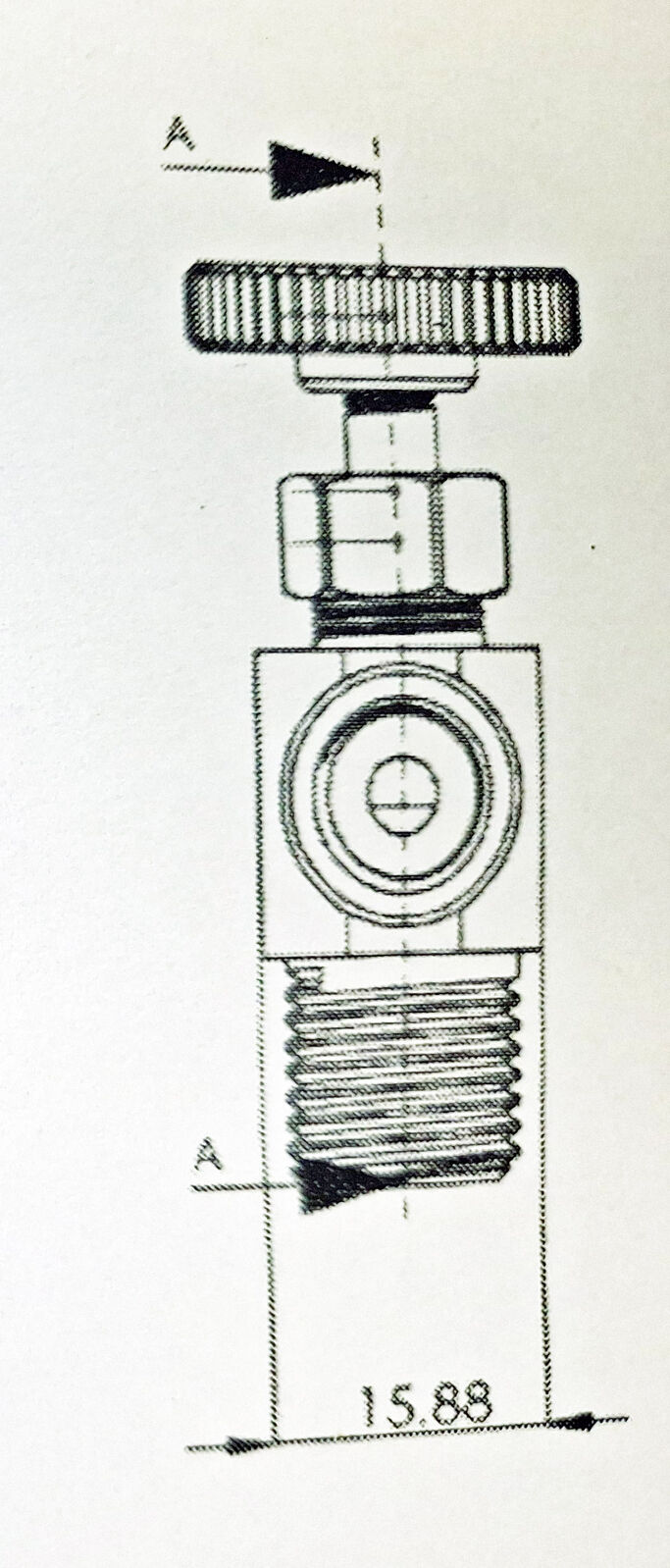

BSP fittings are based on trade size rather than actual diameter. Please check with your pumbing supplier before purchasing accessories for these valves, and refer to the drawings.

The easiest way to install this is to drill a 11.5mm hole and tap a 1/4" BSP thread. You can then screw the tap into position.

We can also supply a 1/4"BSP back nut for a more secure fitting.

The valve can be supplied with 2 brass barbs. A Female brass adapter that screws onto the valves male thread, and a brass barb with a male thread that screws into the valve.

The valve can be used with the tap in the horizontal or vertical position, to suit almost any lapidary machine.
